OREI HDMI Extender over Ethernet (HDMI Balun) CAT5e/CAT6 Power Over Cable - HDBaseT - Zero Latency - 1080P Upto 500 Feet -IR Signal

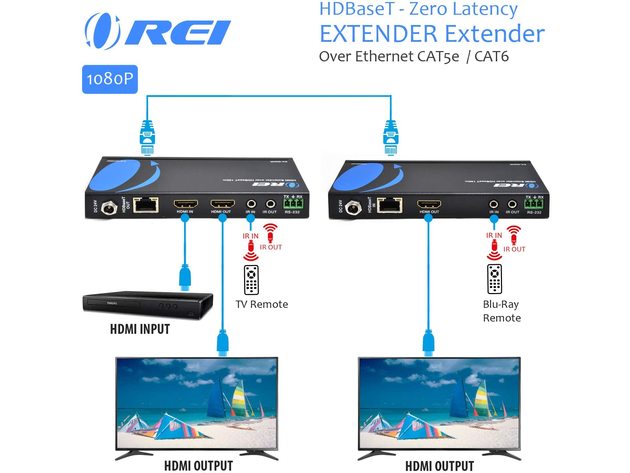

Using a single Cat5e/6/6a cable, the EX-500IR transmits uncompressed HDMI audio and video, RS-232 serial and IR control signals up to 500 feet(150 m) from the previous unit in the chain(either the transmitter or another transceiver), including 1920 x 1080(1080p) signals @ 60 Hz. RS-232 serial signals and IR remote control signals(@ 39 KHz) also pass through the transceiver, so your HDBaseT installation can control such RS-232 devices as scanners and touchscreen displays at baud rates up to 115 Kbps. You can also operate a Blu-ray player using its remote when at the remote monitor and vice versa. Attach the OREI HDMI Extender to a wall, rack or pole using the included hardware. A good quality CAT5e/6/ STP shielded cable is essential in delivering quality content. CAT6 is recommended for better Performance. Avoid using signal converters/adapters.

• Extends 1080p with HDBaseT extender kit over Cat5e/6 allows you to transmit HDMI audio/video up to 500 feet (152m) with zero latency
• Uses HDBaseT Technology for the video transmission
• Bi-directional IR enables source device to recognize remote commands to control HDMI source at the secondary location or vice-versa
• Supported resolution: up to 1080p, 720p, VGA to WUXGA
• Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio, essentially all available audio options are supported

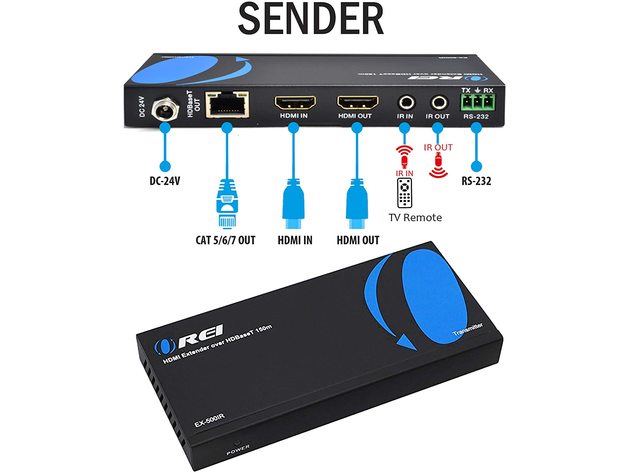

• HDMI Loop-out on the transmitter unit to connect an HDMI display by the source, RS-232 command control port
• Power over Cable – only use one power adapter at either transmitter side or the receiver side to power both units.
• Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation & Compact in size for easy plug & play installation, Full HDCP Compliant
• Includes 100-240 50/60 Hz auto switching power supply for use anywhere in the world, IR-Kit, Mounting Kit, Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty
